Unified Communications Platform
UCP1202
Use the standard SIP protocol; provide 1 main control card slot and 1 module card slot; support 2 * Gigabit Ethernet ports;
- UCP1202Chassis
- 1.5kg /Weight
- 2*1000MNetwork port
Product details
OpenVox Unified Communication Platform (UCP) is the ideal solution for integrating data, voice and video into a single product for small and medium-sized businesses. It can be used in scenarios such as government and enterprise calling systems, commercial call centers and dispatch center industries.
UCP1202 supports 1 main control card slot and 1 service card slot to meet the service needs of fewer than 100 users.
The concept behind UCP is that users can choose different functional and performance module cards as well as control cards according to their needs, and these modules are connected to the backplane via high-speed Ethernet using special communication connectors. UCP products adopt a SIP softswitch core, high integration, and an integrated broadband and narrowband design, which can effectively improve communication efficiency and reduce operating costs. The products are connected to the PSTN (Public Switched Telephone Network) or private network voice switching equipment via digital or analog trunks, and broadband SIP trunks.
Technical specifications:
Key features

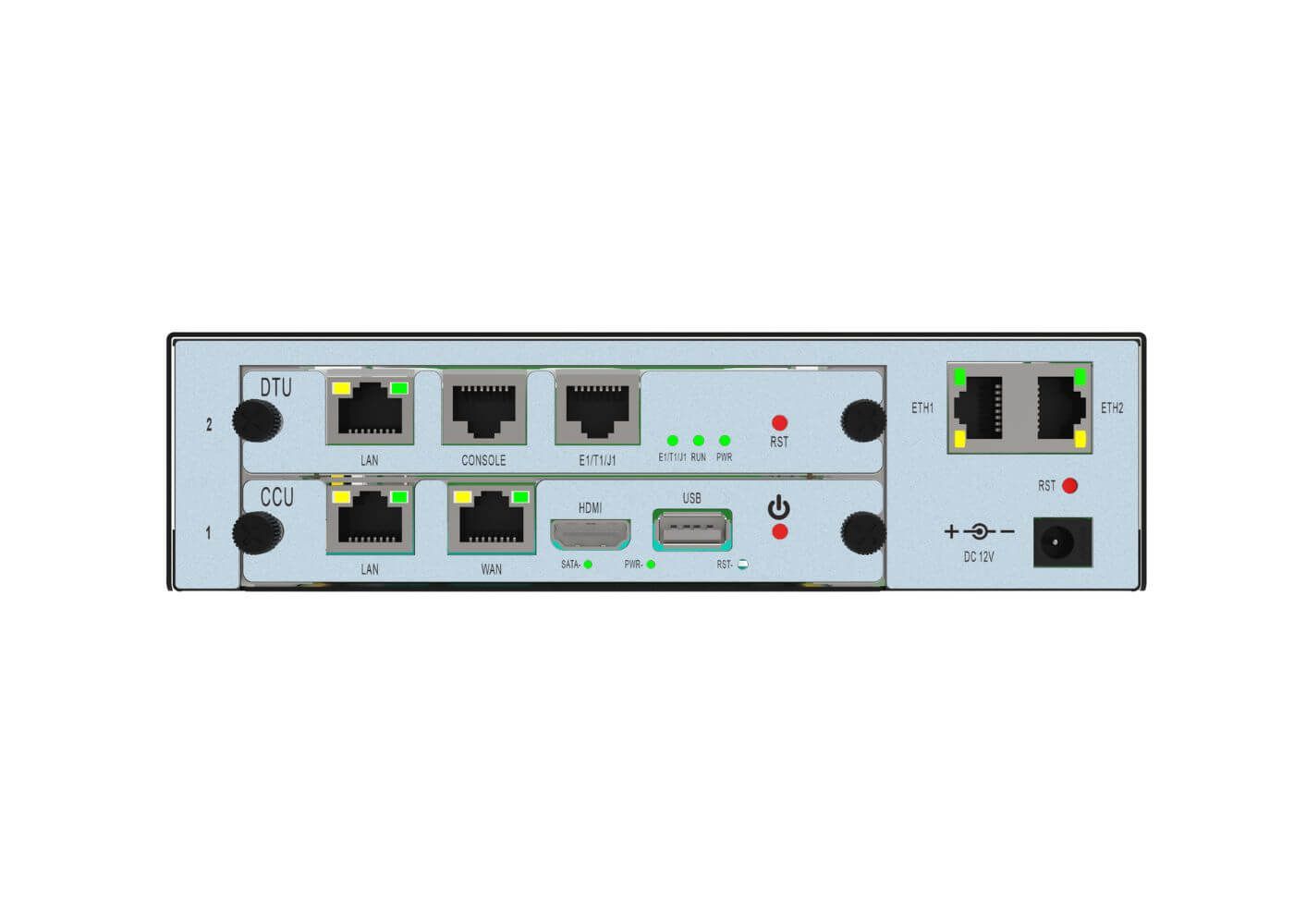

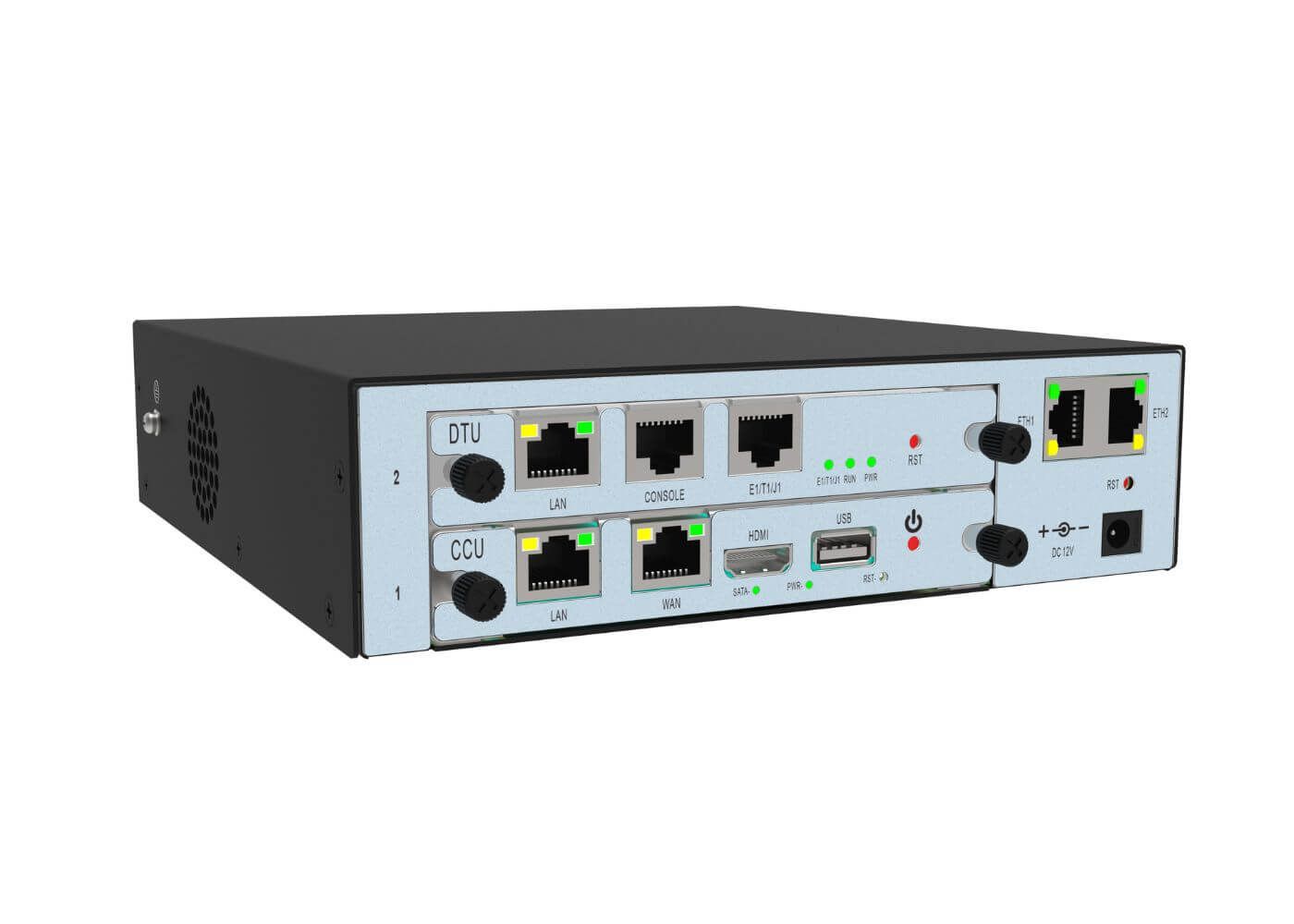

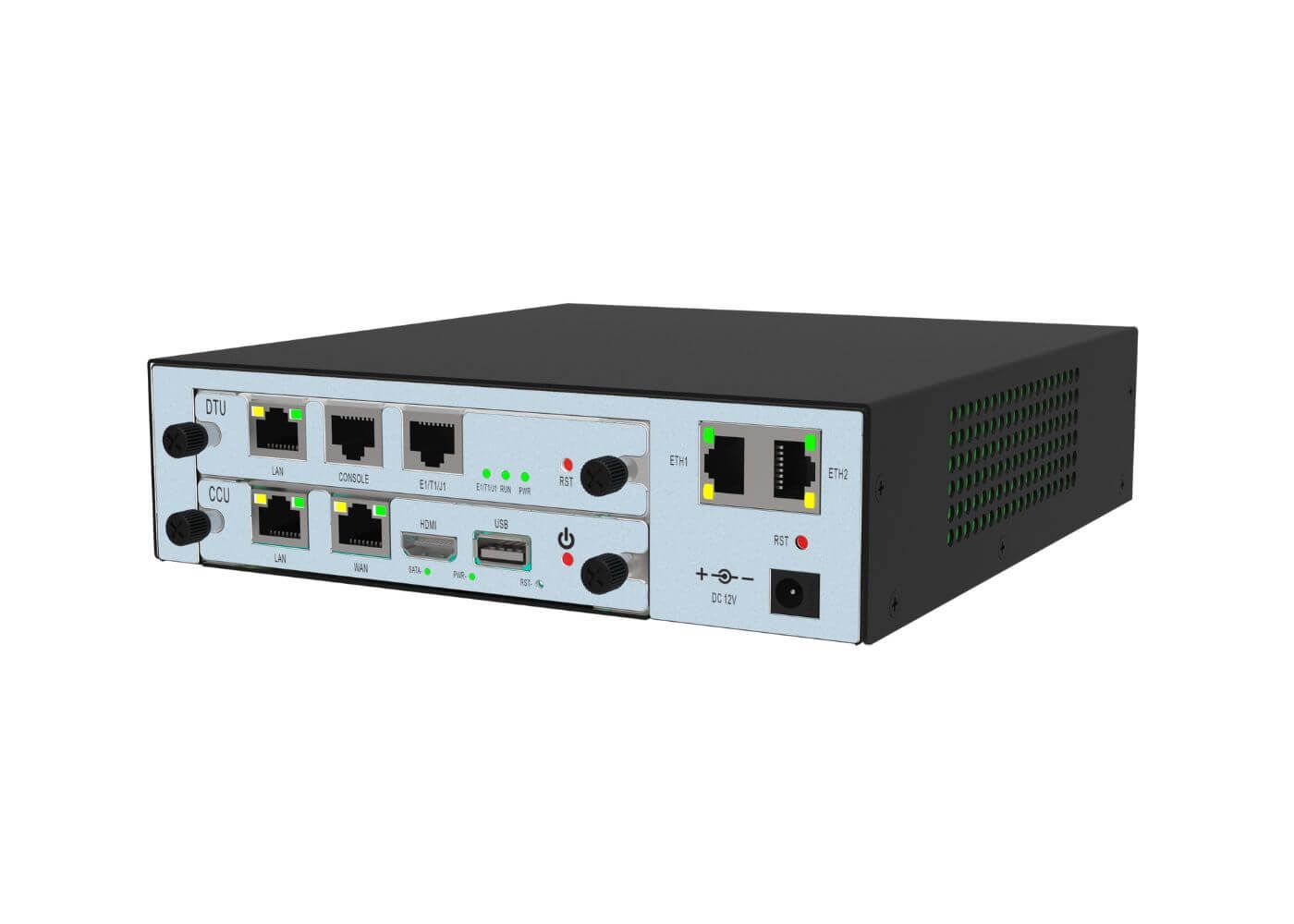

UCP1202 features a sheet-metal chassis, 188 mm wide, 202 mm deep and 50 mm high. It provides 1 main control card slot and 1 service card slot.
Service card specifications:
Specifications
| Specification | Value |
|---|---|
| Technical specifications | |
| Chassis | UCP1202 |
| Location | 1 main control card slot, 1 module card slot |
| Weight | 1.5kg / |
| Dimensions | 188 mm*202 mm*50 mm (length*width*height) / |
| Network port | 2*1000M |
| Maximum power (DC power supply) / | 36W |
| Input current (DC power supply) / | 3A |
| Input voltage (DC power supply) | 12V |
| Long-term operating temperature | 0°C ~ 45°C |
| Short-term operating temperature | - 5°C ~ 55°C |
| Operating humidity range / | 5 % ~ 95 %, non-condensing |
| Storage temperature range | -40°C ~ 70°C |
| Airborne particle concentration | Less than 180 mg/m³ |
